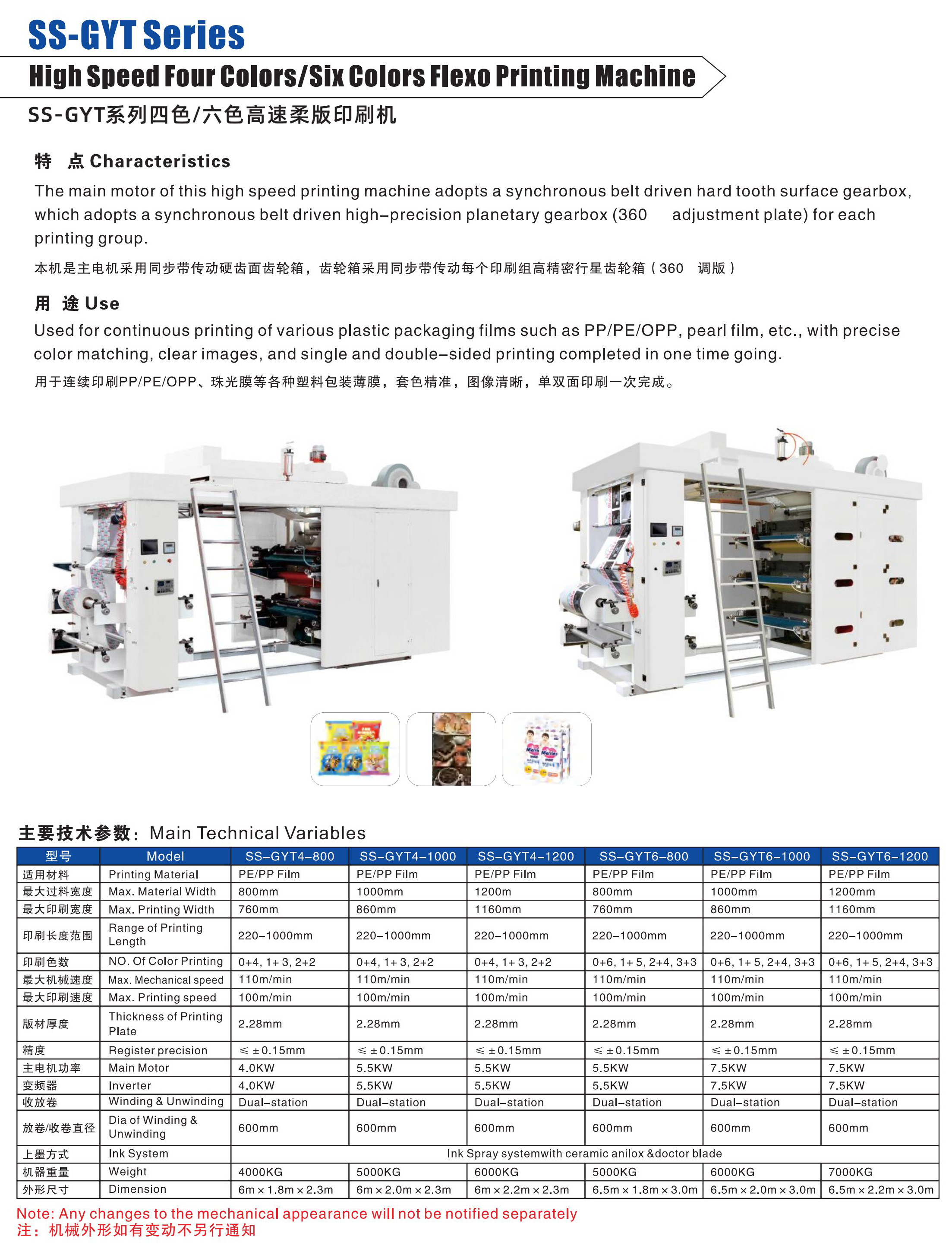

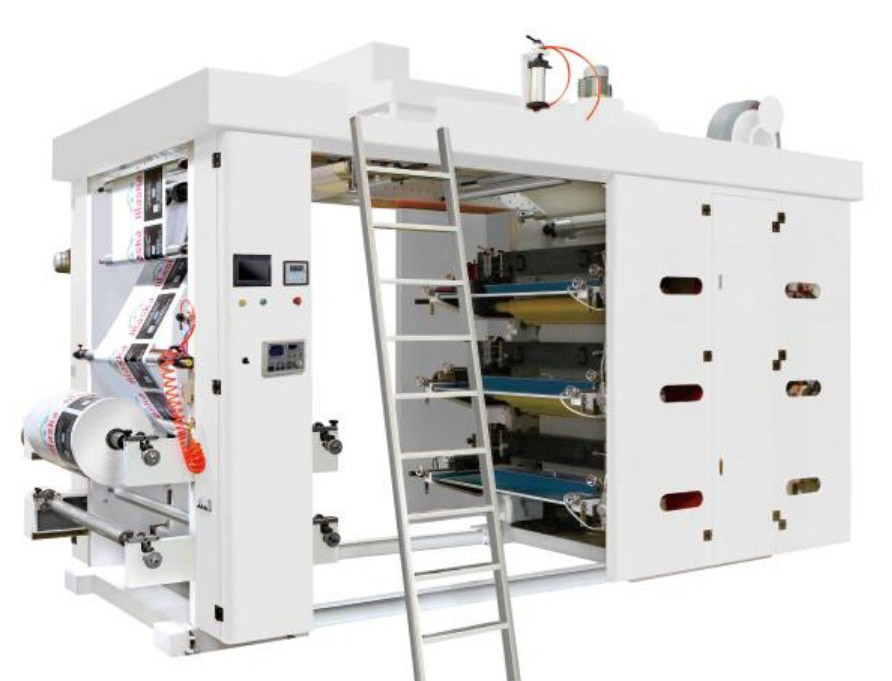

SS-GYT系列四色/六色高速柔版印刷机
SS-GYT系列四色/六色高速柔版印刷机
特点Characteristics
本机是主电机采用同步带传动硬齿面齿轮箱，齿轮箱采用同步带传动每个印刷组高精密行星齿轮箱（360º调版）
用途USE
用于连续印刷PP/PE/OPP、珠光膜等各种塑料包装薄膜，套色精准，图像清晰，单双面印刷一次完成。
四色主要技术参数Main Technical Parameters of Four Colors High Speed Printing Mahcine
|
型号 |
Model |
SS-GYT4-800 |
SS-GYT4-1000 |
SS-GYT4-1200 |
|
适用材料 |
Printing Material |
PE/PP Film |
PE/PP Film |
PE/PP Film |
|
最大过料宽度 |
Max. Material Width |
800mm |
1000mm |
1200mm |
|
最大印刷宽度 |
Max. Printing Width |
760mm |
860mm |
1160mm |
|
印刷长度范围 |
Range of Printing Length |
220-1000mm |
220-1000mm |
220-1000mm |
|
印刷色数 |
NO. Of Color Printing |
0+4, 1+ 3, 2+2 |
0+4, 1+ 3, 2+2 |
0+4, 1+ 3, 2+2 |
|
最大机械速度 |
Max. Mechanical speed |
110m/min |
110m/min |
110m/min |
|
最大印刷速度 |
Max. Printing speed |
100m/min |
100m/min |
100m/min |
|
版材厚度 |
Thickness of Printing Plate |
2.28mm |
2.28mm |
2.28mm |
|
精度 |
Register precision |
≤±0.15mm |
≤±0.15mm |
≤±0.15mm |
|
主电机功率 |
Main Motor |
4.0KW |
5.5KW |
5.5KW |
|
变频器 |
Inverter |
4.0KW |
5.5KW |
5.5KW |
|
收放卷 |
Winding & Unwinding |
Dual-station |
Dual-station |
Dual-station |
|
放卷/收卷直径 |
Dia of Winding & Unwinding |
600mm |
600mm |
600mm |
|
上墨方式 |
Ink System |
Ink Spray system with ceramic anilox & doctor blade |
Ink Spray system with ceramic anilox & doctor blade |
Ink Spray system with ceramic anilox & doctor blade |
|
机器重量 |
Weight |
4000KG |
5000KG |
6000KG |
|
外形尺寸 |
Dimension |
6m×1.8m×2.3m |
6m×2.0m×2.3m |
6m×2.2m×2.3m |
六色主要技术参数Main Technical Parameters of Six Colors High Speed Printing Mahcine
|
型号 |
Model |
SS-GYT6-800 |
SS-GYT6-1000 |
SS-GYT6-1200 |
|
适用材料 |
Printing Material |
PE/PP Film |
PE/PP Film |
PE/PP Film |
|
最大过料宽度 |
Max. Material Width |
800mm |
1000mm |
1200mm |
|
最大印刷宽度 |
Max. Printing Width |
760mm |
860mm |
1160mm |
|
印刷长度范围 |
Range of Printing Length |
220-1000mm |
220-1000mm |
220-1000mm |
|
印刷色数 |
NO. Of Color Printing |
0+6, 1+ 5, 2+4, 3+3 |
0+6, 1+ 5, 2+4, 3+3 |
0+6, 1+ 5, 2+4, 3+3 |
|
最大机械速度 |
Max. Mechanical speed |
110m/min |
110m/min |
110m/min |
|
最大印刷速度 |
Max. Printing speed |
100m/min |
100m/min |
100m/min |
|
版材厚度 |
Thickness of Printing Plate |
2.28mm |
2.28mm |
2.28mm |
|
精度 |
Register precision |
≤±0.15mm |
≤±0.15mm |
≤±0.15mm |
|
主电机功率 |
Main Motor |
5.5KW |
7.5KW |
7.5KW |
|
变频器 |
Inverter |
5.5KW |
7.5KW |
7.5KW |
|
收放卷 |
Winding & Unwinding |
Dual-station |
Dual-station |
Dual-station |
|
放卷/收卷直径 |
Dia of Winding & Unwinding |
600mm |
600mm |
600mm |
|
上墨方式 |
Ink System |
Ink Spray system with ceramic anilox & doctor blade |
Ink Spray system with ceramic anilox & doctor blade |
Ink Spray system with ceramic anilox & doctor blade |
|
机器重量 |
Weight |
5000KG |
6000KG |
7000KG |
|
外形尺寸 |
Dimension |
6.5m×1.8m×3.0m |
6.5m×2.0m×3.0m |
6.5m×2.2m×3.0m |
