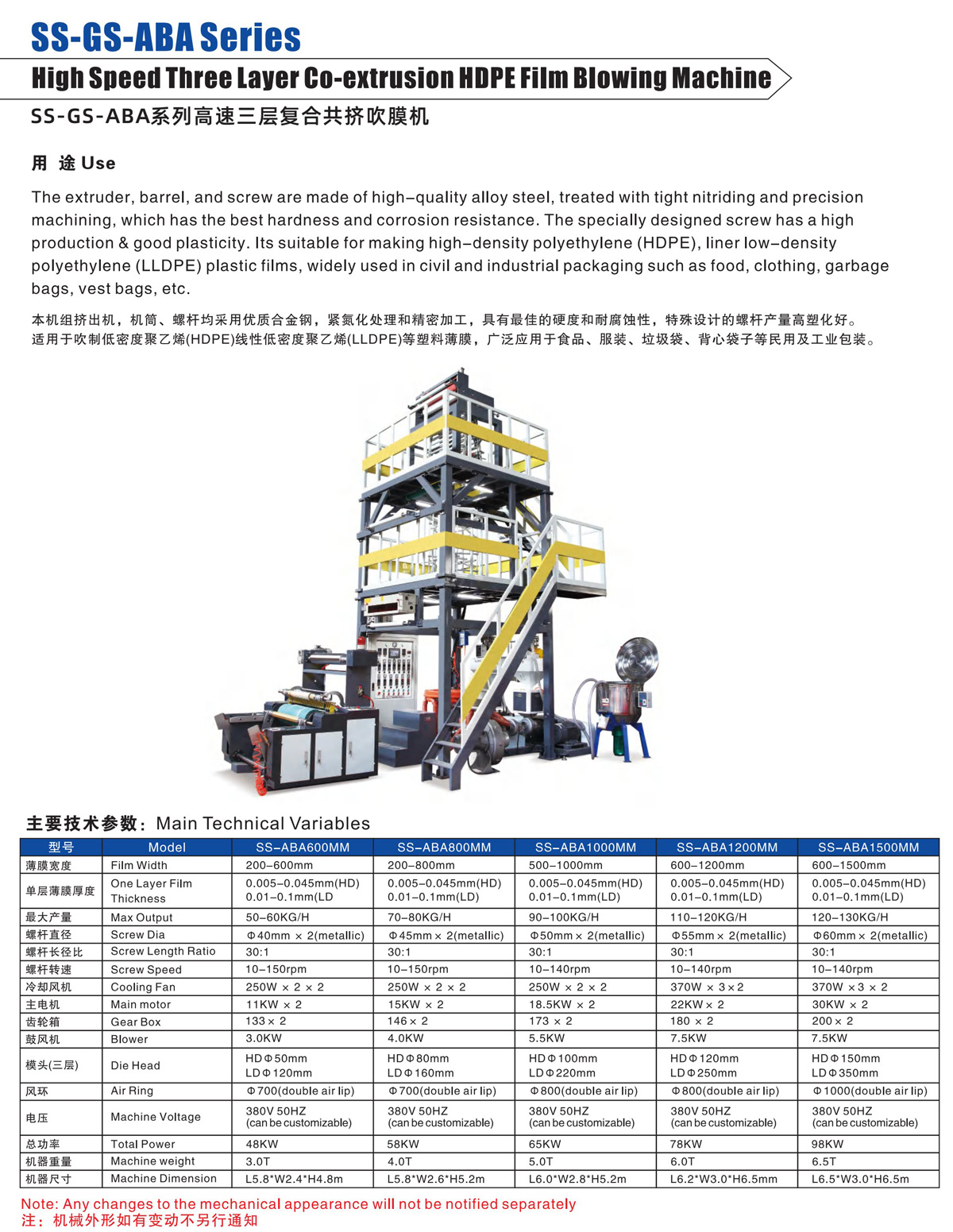

SS-ABA600MM

SS-ABA800MM

SS-ABA1000MM

SS-ABA1200MM

薄膜宽度Film Width

200-600mm

200-800mm

500-1000mm

600-1200mm

单层薄膜厚度

One Layer Film Thickness

0.005-0.045mm(HD)

0.01-0.1mm(LD)

0.005-0.045mm(HD)

0.01-0.1mm(LD)

0.005-0.045mm(HD)

0.01-0.1mm(LD)

0.005-0.045mm(HD)

0.01-0.1mm(LD)

最大产量Max Output

50-60KG/H

70-80KG/H

90-100KG/H

110-120KG/H

螺杆直径Screw Dia

Φ40mm × 2 (metallic)合金

Φ45mm× 2(metallic)合金

Φ50mm× 2(metallic)合金

Φ55mm × 2 (metallic)合金

螺杆长径比Screw Length Ratio

30:1

30:1

30:1

30:1

螺杆转速Screw Speed

10-150rpm(high speed)

10-150rpm(high speed)

10-140rpm(high speed)

10-140rpm(high speed)

冷却风机Cooling Fan

250W × 2 × 2

250W × 2 × 2

250W × 2 × 2

370W × 3×2

主电机Main motor

11KW × 2 with inverter

15KW × 2 with inverter

18.5KW × 2 with inverter

22KW× 2 with inverter

齿轮箱Gear Box

133× 2

146× 2

173 × 2

180 × 2

鼓风机Blower

3.0KW

4.0KW

5.5KW

7.5KW

模头Die Head(三层)

HDΦ50mm /LDΦ120mm

HDΦ80mm/LDΦ160mm

HDΦ100mm/LDΦ220mm

HDΦ120mm//LDΦ250mm

风环 Air Ring

Φ700(double air lip)双风口

Φ700(double air lip)双风口

Φ800(double air lip)双风口

Φ800(double air lip)双风口

电压Machine Voltage

380V 50HZ/220V 60HZ

(can be customizable)

380V 50HZ/220V 60HZ

(can be customizable)

380V 50HZ/220V 60HZ

(can be customizable)

380V 50HZ/220V 60HZ

(can be customizable)

总功率Total Power

48KW

58KW

65KW

78KW

机器重量Machine weight

3.0T

4.0T

5.0T

6.0T

机器尺寸Machine Dimension

L5.8*W2.4*H4.8m

L5.8*W2.6*H5.2m

L6.0*W2.8*H5.2m

L6.2*W3.0*H6.5mm
