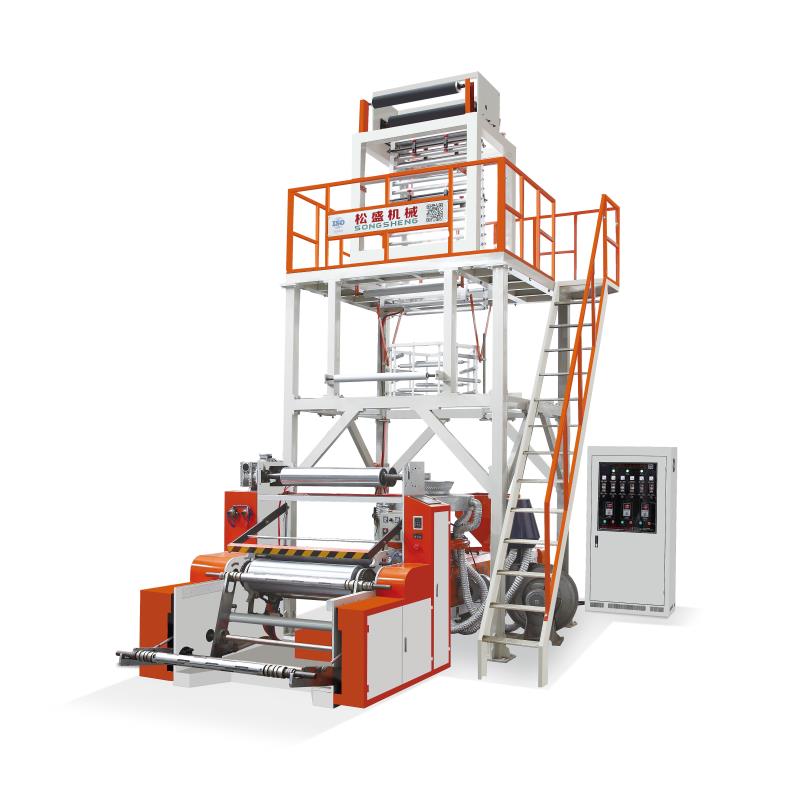

SS-LDHL-2系列高速吹膜机
SS-LDHL-2系列高速吹膜机
用途Use
高低压吹膜机组适用于吹制低密度聚乙烯(LDPE)及线性低密度聚乙烯(LLDPE)塑料薄膜，广泛应用于食品、服装、纺织品、日用品等民用品和工业品的包装。经过不同的原料配方可以生产珠光膜、降解膜。该机是目前市场上高性价比的首选机械。
主要技术参数
|
|
SS-LDHL600MM |
SS-LDHL800MM |
SS-LDHL1000MM |
SS-LDHL1200MM |
|
薄膜宽度Film Width |
100-600mm |
200-800mm |
300-1000mm |
400-1200mm |
|
单层薄膜厚度 One Layer Film Thickness |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
|
最大产量Max Output |
45-50KG/H |
50-60KG/H |
80-90KG/H |
90-100KG/H |
|
螺杆直径Screw Dia |
Φ45mm(metallic)合金 |
Φ50mm(metallic)合金 |
Φ60mm(metallic)合金 |
Φ65mm(metallic)合金 |
|
螺杆长径比Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
螺杆转速Screw Speed |
10-150rpm(high speed) |
10-150rpm(high speed) |
10-150rpm(high speed) |
10-150rpm(high speed) |
|
冷却风机Cooling Fan |
250W ×2 |
250W × 2 |
370W ×3 |
370W ×3 |
|
主电机Main motor |
15KW with inverter |
18.5KW with inverter |
30KW with inverter |
37KW with inverter |
|
齿轮箱Gear Box |
146 |
173 |
200 |
200 |
|
鼓风机Blower |
2.2KW |
3.0KW |
4.0KW |
5.5KW |
|
模头Die Head |
LDΦ120mm(Fix die) |
LDΦ150mm(Fix die) |
LDΦ220mm(Fix die) |
LDΦ250mm (Fix die) |
|
风环 Air Ring |
Φ700(double air lip)双风口 |
Φ800(double air lip)双风口 |
Φ1000(double air lip)双风口 |
Φ1000(double air lip)双风口 |
|
电压Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
总功率Total Power |
35KW |
40KW |
55KW |
65KW |
|
机器重量Machine weight |
2.5T |
3.0T |
3.5T |
6.0T |
|
机器尺寸Machine Dimension |
L4.8*W2.2*H4.5m |
L5.0*W2.4*H5.2m |
L5.5*W2.6*H5.5m |
L5.5*W2.8*H6.2mm |
|
|
SS-LDHL1500MM |
|
薄膜宽度Film Width |
500-1500mm |
|
单层薄膜厚度 One Layer Film Thickness |
0.01-0.1mm |
|
最大产量Max Output |
100-120KG/H |
|
螺杆直径Screw Dia |
Φ75mm(metallic)合金 |
|
螺杆长径比Screw Length Ratio |
30:1 |
|
螺杆转速Screw Speed |
10-140rpm(high speed) |
|
冷却风机Cooling Fan |
370W ×3 |
|
主电机Main motor |
55KW with inverter |
|
齿轮箱Gear Box |
225 |
|
鼓风机Blower |
7.5KW |
|
模头Die Head |
LDΦ350mm |
|
风环 Air Ring |
Φ1200(double air lip)双风口 |
|
电压Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
|
总功率Total Power |
95KW |
|
机器重量Machine weight |
8.0T |
|
机器尺寸Machine Dimension |
L6.8*W2.6*H6.50 |
