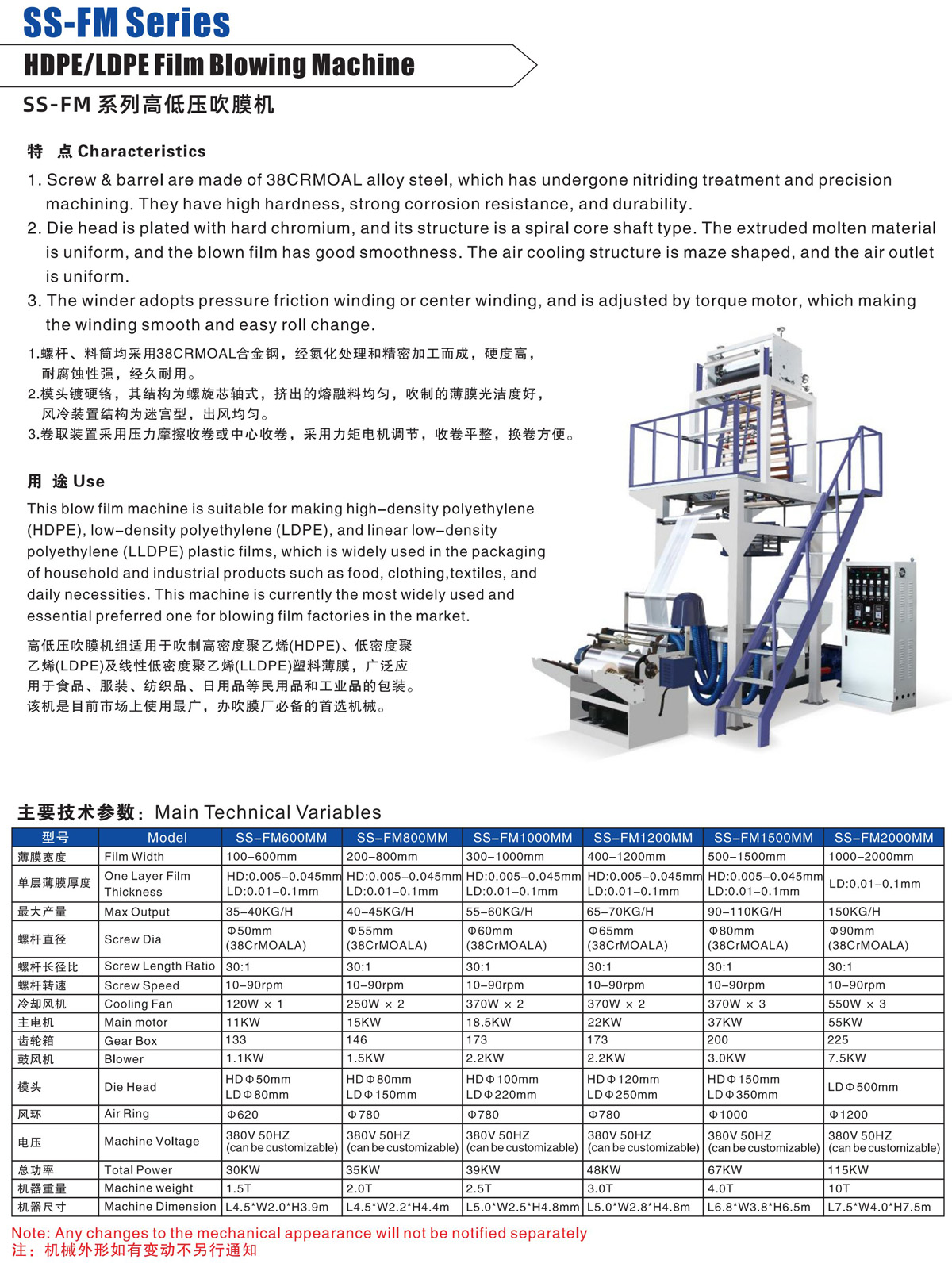

SS-FM 系列高低压吹膜机
SS-FM 系列高低压吹膜机
特点
1. 螺杆、料筒均采用38CRMOAL合金钢，经氮化处理和精密加工而成，硬度高，耐腐蚀性强，经久耐用。
2. 模头镀硬铬，其结构为螺旋芯轴式，挤出的熔融料均匀，吹制的薄膜光洁度好，风冷装置结构为迷宫型，出风均匀。
3. 卷取装置采用压力摩擦收卷或中心收卷，采用力矩电机调节，收卷平整，换卷方便。
用途Use
高低压吹膜机组适用于吹制高密度聚乙烯(HDPE)、低密度聚乙烯(LDPE)及线性低密度聚乙烯(LLDPE)塑料薄膜，广泛应用于食品、服装、纺织品、日用品等民用品和工业品的包装。该机是目前市场上使用最广，办吹膜厂必备的首选机械。
|
|
SS-FM600MM |
SS-FM800MM |
SS-FM1000MM |
SS-FM1200MM |
|
薄膜宽度Film Width |
100-600mm |
200-800mm |
300-1000mm |
400-1200mm |
|
薄膜厚度Film Thickness |
HDPE:0.005-0.045mm LDPE:0.01-0.1mm |
HDPE:0.005-0.045mm LDPE:0.01-0.1mm |
HDPE:0.005-0.045mm LDPE:0.01-0.1mm |
HDPE:0.005-0.045mm LDPE:0.01-0.1mm |
|
最大产量Max Output |
35-40KG/H |
40-45KG/H |
55-60KG/H |
65-70KG/H |
|
螺杆直径Screw Dia |
Φ50mm(38CrMOALA) |
Φ55mm(38CrMOALA) |
Φ60mm(38CrMOALA) |
Φ65mm(38CrMOALA) |
|
螺杆长径比Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
螺杆转速Screw Speed |
10-90rpm |
10-90rpm |
10-90rpm |
10-90rpm |
|
冷却风机Cooling Fan |
120W × 1 |
250W × 2 |
370W × 2 |
370W × 2 |
|
主电机Main Motor |
11KW with inverter |
15KW with inverter |
18.5KW with inverter |
22KW with inverter |
|
齿轮箱Gear Box |
133 |
146 |
173 |
173 |
|
鼓风机Blower |
1.1KW |
1.5KW |
2.2KW |
2.2KW |
|
模头Die Head |
HDΦ50mm & LDΦ80mm |
HDΦ80mm & LDΦ150mm |
HDΦ100mm & LDΦ220mm |
HDΦ120mm & LDΦ250mm |
|
风环 Air Ring |
Φ620 |
Φ780 |
Φ780 |
Φ780 |
|
电压Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
总功率Total Power |
30KW |
35KW |
39KW |
48KW |
|
机器重量Machine weight |
1.5T |
2.0T |
2.5T |
3.0T |
|
机器尺寸Machine Dimension |
L4.5*W2.0*H3.9m |
L4.5*W2.2*H4.4m |
L5.0*W2.5*H4.8mm |
L5.0*W2.8*H4.8m |
|
|
SS-FM1500MM |
SS-FM2000MM |
SS-FM2500MM |
SS-FM3000MM |
|
薄膜宽度Film Width |
500-1500mm |
1000-2000mm |
1500-2500mm |
1500-3000mm |
|
薄膜厚度Film Thickness |
HDPE:0.005-0.045mm LDPE:0.01-0.1mm |
LDPE:0.01-0.1mm |
LDPE:0.01-0.1mm |
LDPE:0.01-0.1mm |
|
最大产量Max Output |
90-110KG/H |
150KG/H |
260KG/H |
300KG/H |
|
螺杆直径Screw Dia |
Φ80mm(38CrMOALA) |
Φ90mm(38CrMOALA) |
Φ110mm(38CrMOALA) |
Φ120mm(38CrMOALA) |
|
螺杆长径比Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
螺杆转速Screw Speed |
10-90rpm |
10-90rpm |
10-90rpm |
10-90rpm |
|
冷却风机Cooling Fan |
370W × 3 |
550W × 3 |
550W × 4 |
550W × 5 |
|
主电机Main motor |
37KW with inverter |
55KW with inverter |
75KW with inverter |
22KW with inverter |
|
齿轮箱Gear Box |
200 |
225 |
280 |
315 |
|
鼓风机Blower |
3.0KW |
7.5KW |
11KW |
15KW |
|
模头Die Head |
HDΦ150mm & LDΦ350mm |
LDΦ500mm |
LDΦ600mm |
LDΦ800mm |
|
风环 Air Ring |
Φ1000 |
Φ1200 |
Φ1400 |
Φ1600 |
|
电压Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
总功率Total Power |
67KW |
115KW |
146KW |
170KW |
|
机器重量Machine weight |
4.0T |
10T |
14T |
20T |
|
机器尺寸Machine Dimension |
L6.8*W3.8*H6.5m |
L7.5*W4.0*H7.5m |
L7.5*W4.8*H9.5m |
L8.5*W6.5*H11.0m |
