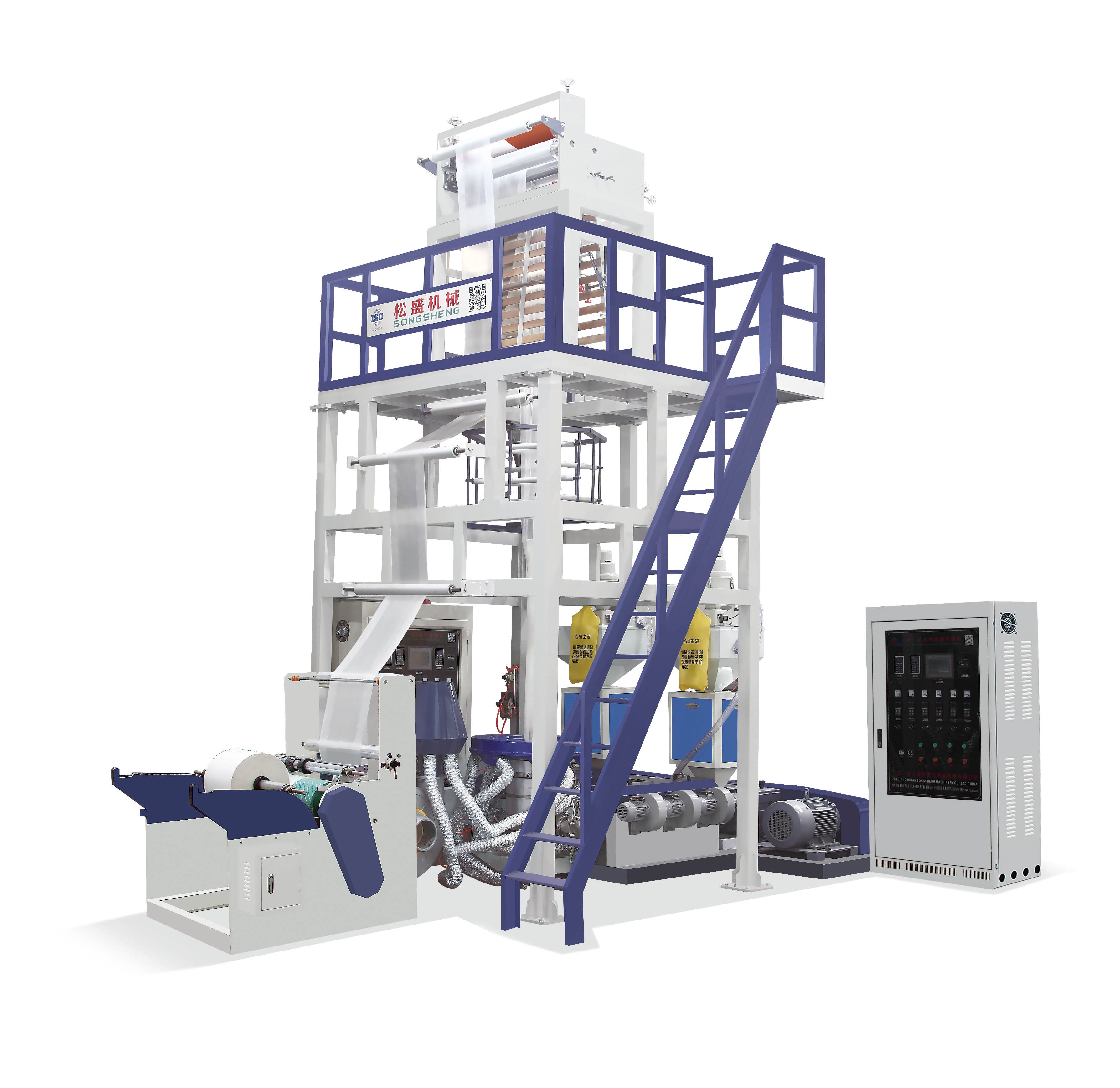

SS-GS-2L系列两层复合共挤高速吹膜机
SS-GS-2L系列两层复合共挤高速吹膜机
特 点
1、两层共挤复合膜可延长液体包装保鲜期。
2、挤出机的机筒、螺杆均采用优质合金钢经精密加工和氮化处理，使其硬度达到最佳值，经久耐用。
3、辅机设平台式工作台，使操作方便并配制定泡圈。
4、卷取装置:其动力采用力矩电机,可保持适宜的张力,收卷整齐,换卷方便。
用途
本机组挤出机，机筒、螺杆用于吹制低密度聚乙烯(LDPE)、高密度聚乙烯(HDPE)和线形低密度聚乙烯(LLDPE)等塑料复合膜。广泛应用于液体包装、印刷基材、出口产品包装、工业品包装等。
主要技术参数Main Technical Parameters
|
|
SS-2L600MM |
SS-2L800MM |
SS-2L1000MM |
SS-2L1200MM |
|
薄膜宽度Film Width |
100-600mm |
200-800mm |
500-1000mm |
600-1200mm |
|
单层薄膜厚度 One Layer Film Thickness |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
|
最大产量Max Output |
50-70KG/H |
60-90KG/H |
80-110KG/H |
80-120KG/H |
|
螺杆直径Screw Dia |
Φ45mm × 2 (metallic) |
Φ50mm× 2(metallic) |
Φ55mm× 2 (metallic) |
Φ55mm × 2 (metallic) |
|
螺杆长径比Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
螺杆转速Screw Speed |
10-150rpm(high speed) |
10-150rpm(high speed) |
10-120rpm(high speed) |
10-90rpm(high speed) |
|
冷却风机Cooling Fan |
250W × 2 × 2 |
370W × 2 × 2 |
370W × 3 × 2 |
370W × 3 × 2 |
|
主电机Main motor |
15KW × 2 with inverter |
18.5KW × 2 with inverter |
22KW × 2 with inverter |
22KW× 2 with inverter |
|
齿轮箱Gear Box |
146× 2 |
173× 2 |
180 × 2 |
180 × 2 |
|
鼓风机Blower |
3.0KW |
4.0KW |
5.5KW |
5.5KW |
|
模头Die Head(两层) |
HDΦ50mm&LDΦ120mm |
HDΦ80mm&LDΦ180mm |
HDΦ100mm&LDΦ220mm |
HDΦ120mm&LDΦ250mm |
|
风环 Air Ring |
Φ800(double air lip)双风口 |
Φ800(double air lip)双风口 |
Φ1000(double air lip)双风口 |
Φ1000(double air lip)双风口 |
|
电压Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
总功率Total Power |
58KW |
68KW |
80KW |
85KW |
|
机器重量Machine weight |
3.0T |
4.0T |
5.0T |
5.0T |
|
机器尺寸Machine Dimension |
L5.8*W2.3*H5.2m |
L6.0*W2.5*H5.2m |
L6.2*W2.7*H5.5m |
L6.5*W2.9*H5.8mm |
|
|
SS-2L1500MM |
SS-2L2000MM |
SS-2L2500MM |
SS-2L3000MM |
|
薄膜宽度Film Width |
600-1500mm |
1000-2000mm |
1500-2500mm |
1500-3000mm |
|
单层薄膜厚度 One Layer Film Thickness |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
0.01-0.1mm(LD) |
0.01-0.1mm(LD) |
0.01-0.1mm(LD) |
|
最大产量Max Output |
120-160KG/H |
160-200KG/H |
200-250KG/H |
260-330KG/H |
|
螺杆直径Screw Dia |
Φ65mm× 2 (metallic) |
Φ70mm× 2 (metallic) |
Φ80mm× 2 (metallic) |
Φ90mm× 2 (metallic) |
|
螺杆长径比 Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
螺杆转速Screw Speed |
10-120rpm(high speed) |
10-120rpm(high speed) |
10-120rpm(high speed) |
10-120rpm(high speed) |
|
冷却风机Cooling Fan |
370W ×3 × 2 |
370W ×3 × 2 |
550W ×3 × 2 |
550W ×4 × 2 |
|
主电机Main motor |
37KW × 2 with inverter |
45KW × 2 with inverter |
55KW × 2 with inverter |
75KW × 2 with inverter |
|
齿轮箱Gear Box |
200× 2 |
225× 2 |
250× 2 |
250× 2 |
|
鼓风机Blower |
7.5KW |
11KW |
15KW |
18.5KW |
|
模头Die Head |
HDΦ150mm&LDΦ350mm |
Φ500mm |
Φ600mm |
Φ800mm |
|
风环 Air Ring |
Φ1000(double air lip)双风口 |
Φ1200(double air lip)双风口 |
Φ1600(double air lip)双风口 |
Φ1800(double air lip)双风口 |
|
电压Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
总功率Total Power |
128KW |
180KW |
200KW |
280KW |
|
机器重量Machine weight |
7.5T |
13.0T |
16.0T |
25.0T |
|
机器尺寸 Machine Dimension |
L6.8*W3.2*H7.5m |
L7.0*W3.7*H8.5m |
L8.0*W4.2*H9.5m |
L9.0*W4.7*H11m |
